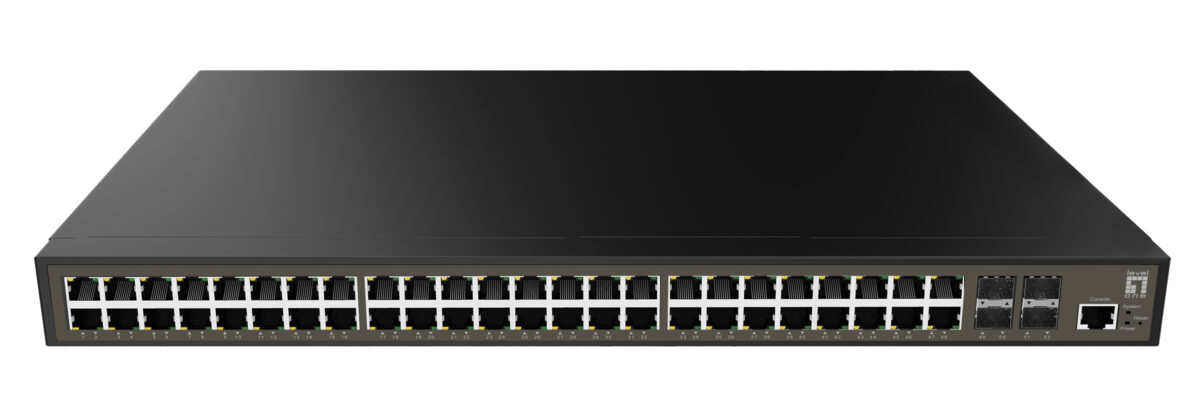

The LevelOne GEL-5271 is an intelligent 52-Port L2 plus managed gigabit switch with 48 RJ45 ports and 4 SFP fiber slots, designed for enterprise or large workgroups connectivity applications with the non-blocking, wire-speed switching performance and advanced networking management functions.
The switch supports a flexible web-based management interface for both IPv4 and IPv6 as well as console, SNMP and Telnet management access. Despite its affordable pricing, the GEL-5271 is equipped with many advanced features such as Internet Group Management Protocol (IGMP) snooping, port-/MAC-/tag-based VLAN, IEEE 802.1D/w/s Spanning Tree, Access Control List (ACL), IEEE 802.3az Energy Efficient Ethernet, Link Aggregation Control Protocol (LACP), IEEE 802.1p QoS, Storm Control for protecting against broadcast/multicast/unknown unicast and much more.
An ideal network solution for anyone looking for an affordable and efficient way to expand their network.
Spezifikationen
| Switch type | Managed |
| Switch layer | L2+ |
| Quality of Service (QoS) support | Yes |
| Web-based management | Yes |
| Basic switching RJ-45 Ethernet ports quantity | 48 |
| Basic switching RJ-45 Ethernet ports type | Gigabit Ethernet (10/100/1000) |
| Gigabit Ethernet (copper) ports quantity | 48 |
| SFP module slots quantity | 4 |

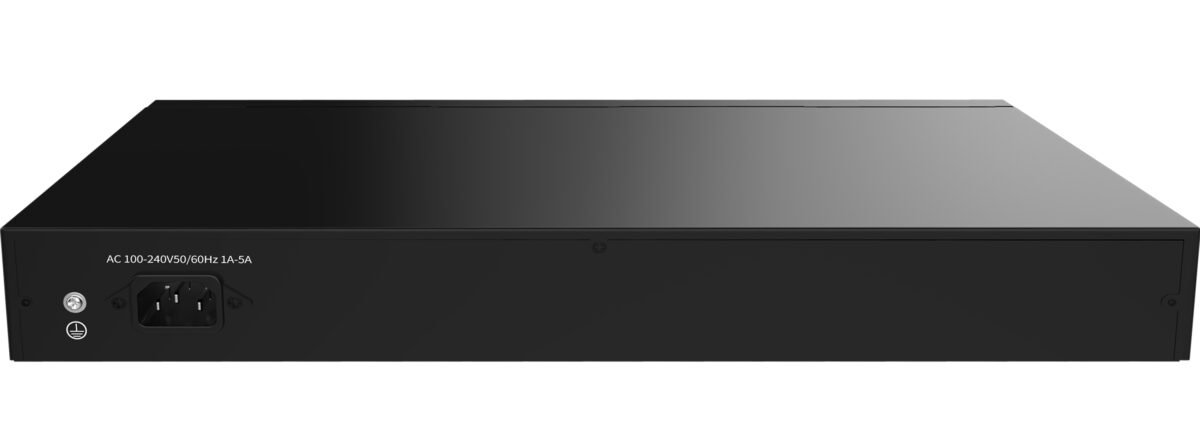

| Power connector | AC-in jack |
| Networking standards | IEEE 802.1D, IEEE 802.1Q, IEEE 802.1s, IEEE 802.1w, IEEE 802.3, IEEE 802.3ab, IEEE 802.3ad, IEEE 802.3u, IEEE 802.3x, IEEE 802.3z |
| 10G support | Yes |
| Copper ethernet cabling technology | 10BASE-T, 100BASE-TX, 1000BASE-T |
| Port mirroring | Yes |
| Broadcast storm control | Yes |
| Ethernet LAN data rates | 10,100,1000 Mbit/s |
| Fiber ethernet cabling technology | 1000BASE-LHX, 1000BASE-LX, 1000BASE-SX, 1000BASE-ZX |
| MAC address table | 16000 entries |
| Static route | Yes |
| Jumbo frames support | Yes |
| Jumbo frames | 10000 |
| DHCP features | DHCP Option 82, DHCP client, DHCP snooping |
| Access Control List (ACL) | Yes |
| IGMP snooping | Yes |
| Password protection | Yes |
| Multicast support | Yes |
| Routing protocols | RIP |
| Rack mounting | Yes |
| Stackable | No |
| Form factor | 1U |
| Product colour | Black |
| LED indicators | Activity, Link, Power |
| Country of origin | China |
| Certification | FCC Part 15 Subpart B, CE Mark, EN IEC 62368-1, EN 55032, EN 55035, EN 61000-3-2/3, RoHS |
| Built-in processor | Yes |
| Internal memory | 256 MB |
| Flash memory | 512 MB |
| Noise level | 45 dB |
| Firmware upgradeable | Yes |
| Power source | AC |
| Power supply included | Yes |
| AC input voltage | 100 - 240 V |
| AC input frequency | 50 - 60 Hz |
| Power consumption (typical) | 40 W |
| Power over Ethernet (PoE) | No |
| Operating temperature (T-T) | 10 - 50 °C |
| Storage temperature (T-T) | -40 - 70 °C |
| Operating relative humidity (H-H) | 10 - 90% |
| Storage relative humidity (H-H) | 5 - 95% |
| Width | 440 mm |
| Depth | 300 mm |
| Height | 44 mm |
| Weight | 3.5 kg |
| Cables included | AC |
| Quick start guide | Yes |
| Package type | Box |
| Rack mount kit | Yes |
| Package width | 535 mm |
| Package depth | 340 mm |
| Package height | 80 mm |
| Package weight | 4.2 kg |
| Harmonized System (HS) code | 85176990 |
