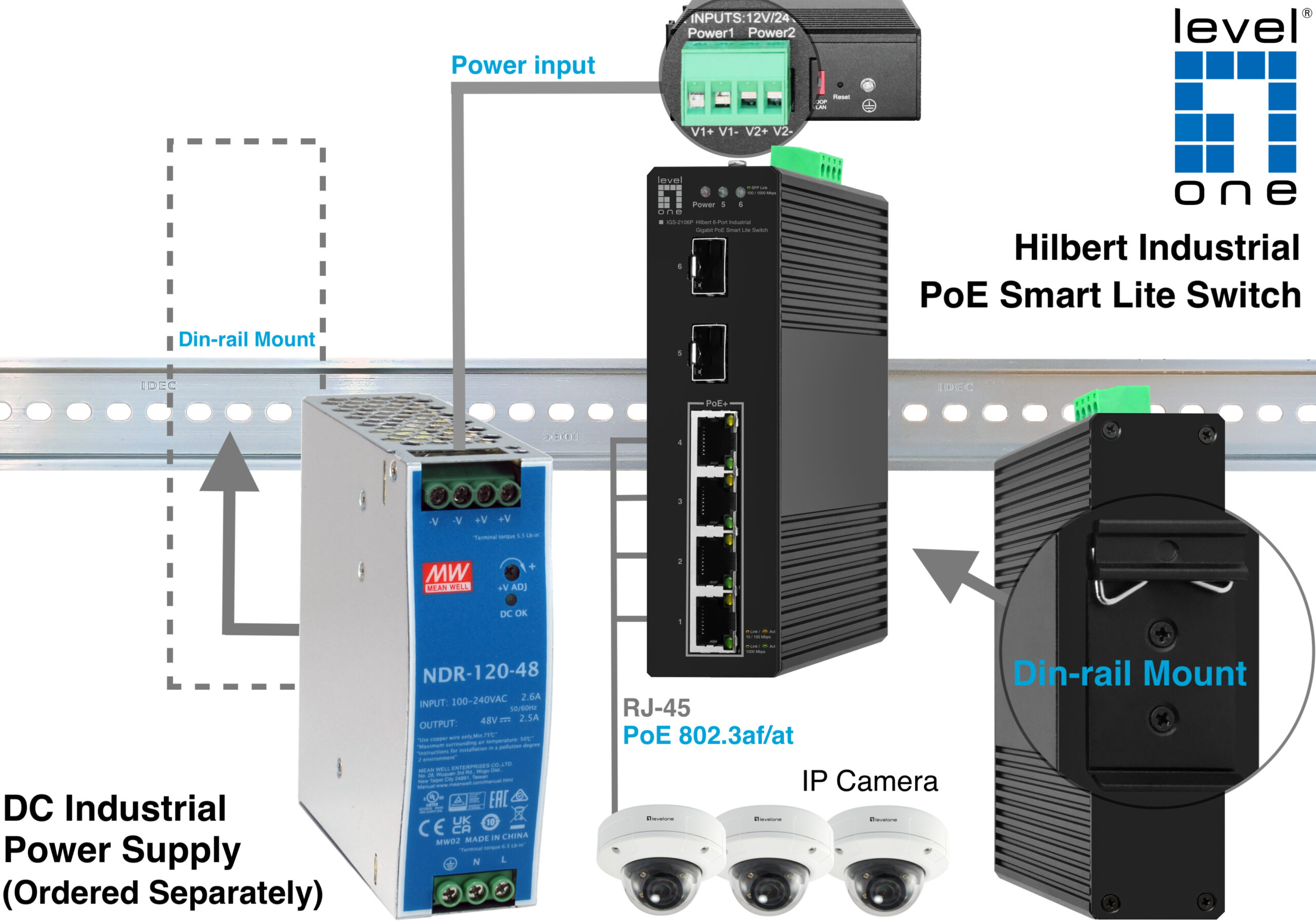

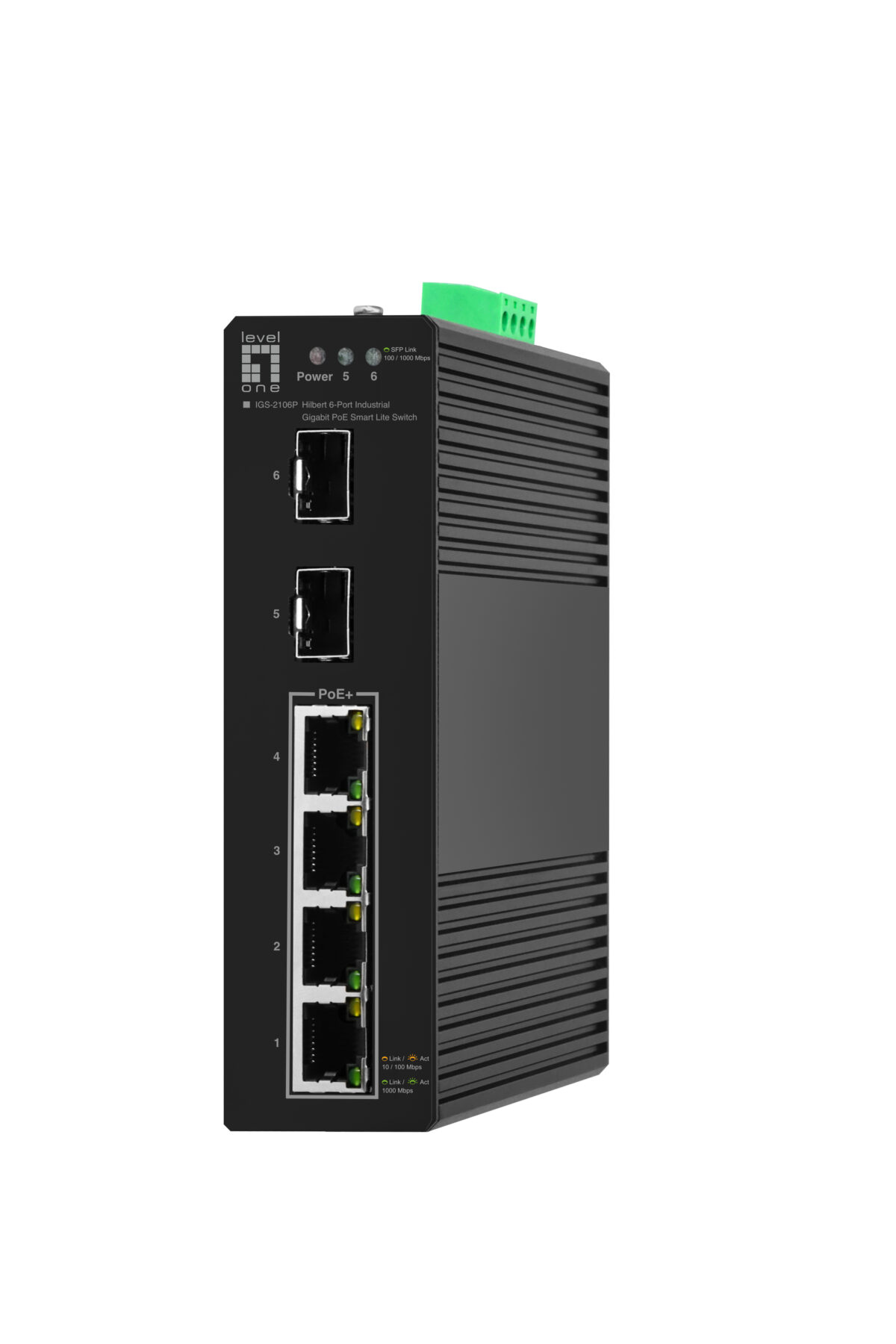

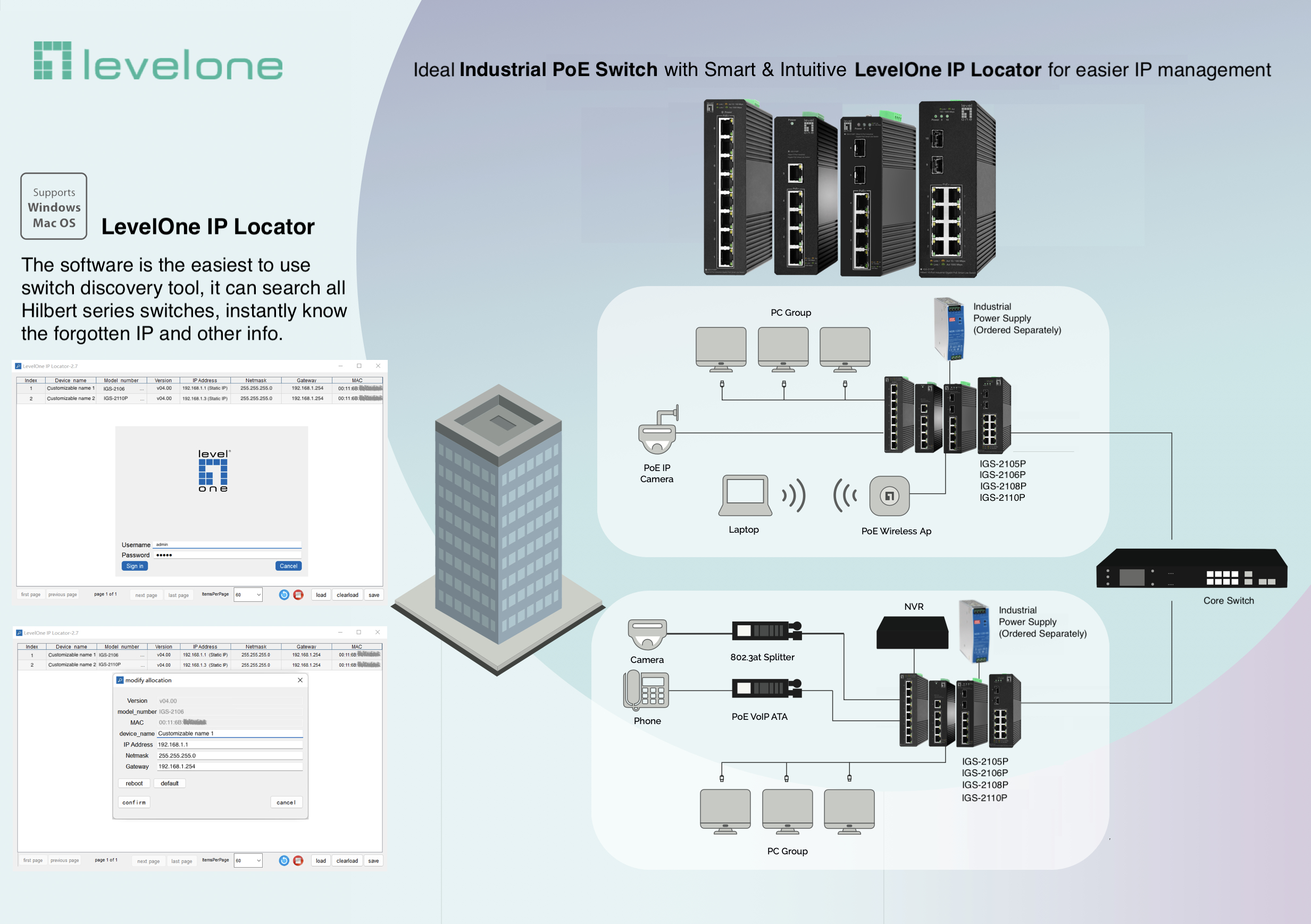

The LevelOne IGS-2106P Hilbert Industrial gigabit PoE smart lite switch is a next-generation Ethernet Switch offering powerful better PoE functionality and usability that delivers the cost-effectively business and transports Ethernet services via fiber or copper connections. IGS-2106P delivers 4 (10M/100M/1G) RJ45/PoE+ (Support 802.3at/af) ports and 2 Gigabit SFP ports. With the industrial standard DIN-rail mount, plus the clearly visible status LEDs provide simple monitoring of port link activity.. can be matched with the latest LevelOne IP Locator, the software is the easiest to use switch discovery tool, it can search all Hilbert series switches, instantly know the forgotten IP and other info. Compatible with mainstream Windows and Mac operating systems.
The LevelOne IGS-2106P provides high HW performance and environment flexibility for Enterprises. IGS-2106P is ideal to deliver management simplicity, optimum user experience, and lower total cost of ownership.
Spezifikationen
| Switch type | Managed |
| Switch layer | L2 |
| Quality of Service (QoS) support | Yes |
| Web-based management | Yes |
| Basic switching RJ-45 Ethernet ports quantity | 4 |
| Basic switching RJ-45 Ethernet ports type | Gigabit Ethernet (10/100/1000) |
| Gigabit Ethernet (copper) ports quantity | 4 |
| SFP module slots quantity | 2 |
| Fiber uplink ports quantity | 2 |
| Networking standards | IEEE 802.1D, IEEE 802.1Q, IEEE 802.1p, IEEE 802.1w, IEEE 802.3, IEEE 802.3ab, IEEE 802.3af, IEEE 802.3at, IEEE 802.3az, IEEE 802.3u, IEEE 802.3x, IEEE 802.3z |
| 10G support | No |
| Copper ethernet cabling technology | 10BASE-T, 100BASE-TX, 1000BASE-T, 1000BASE-X |
| Port mirroring | Yes |
| Full duplex | Yes |
| Half duplex | Yes |
| Flow control support | Yes |
| Link aggregation | Yes |
| Broadcast storm control | Yes |
| Rate limiting | Yes |
| Auto MDI/MDI-X | Yes |
| Spanning tree protocol | Yes |
| Auto-negotiation | Yes |
| MAC address auto-learning supported | Yes |
| MAC address auto-aging supported | Yes |
| VLAN support | Yes |
| Virtual LAN features | Port-based VLAN, Tagged VLAN |
| Number of VLANs | 32 |
| Switching capacity | 12 Gbit/s |
| Forwarding rate | 8.928 Mpps |
| MAC address table | 2000 entries |
| Jumbo frames support | Yes |
| Jumbo frames | 9000 |
| Packet buffer memory | 1.5 MB |
| IGMP snooping | Yes |
| Queue scheduling algorithms | Priority queuing (PQ) |
| Multicast support | Yes |
| Product colour | Black |
| LED indicators | Activity, Link, Power |
| Redundant fans support | Yes |
| International Protection (IP) code | IP30 |

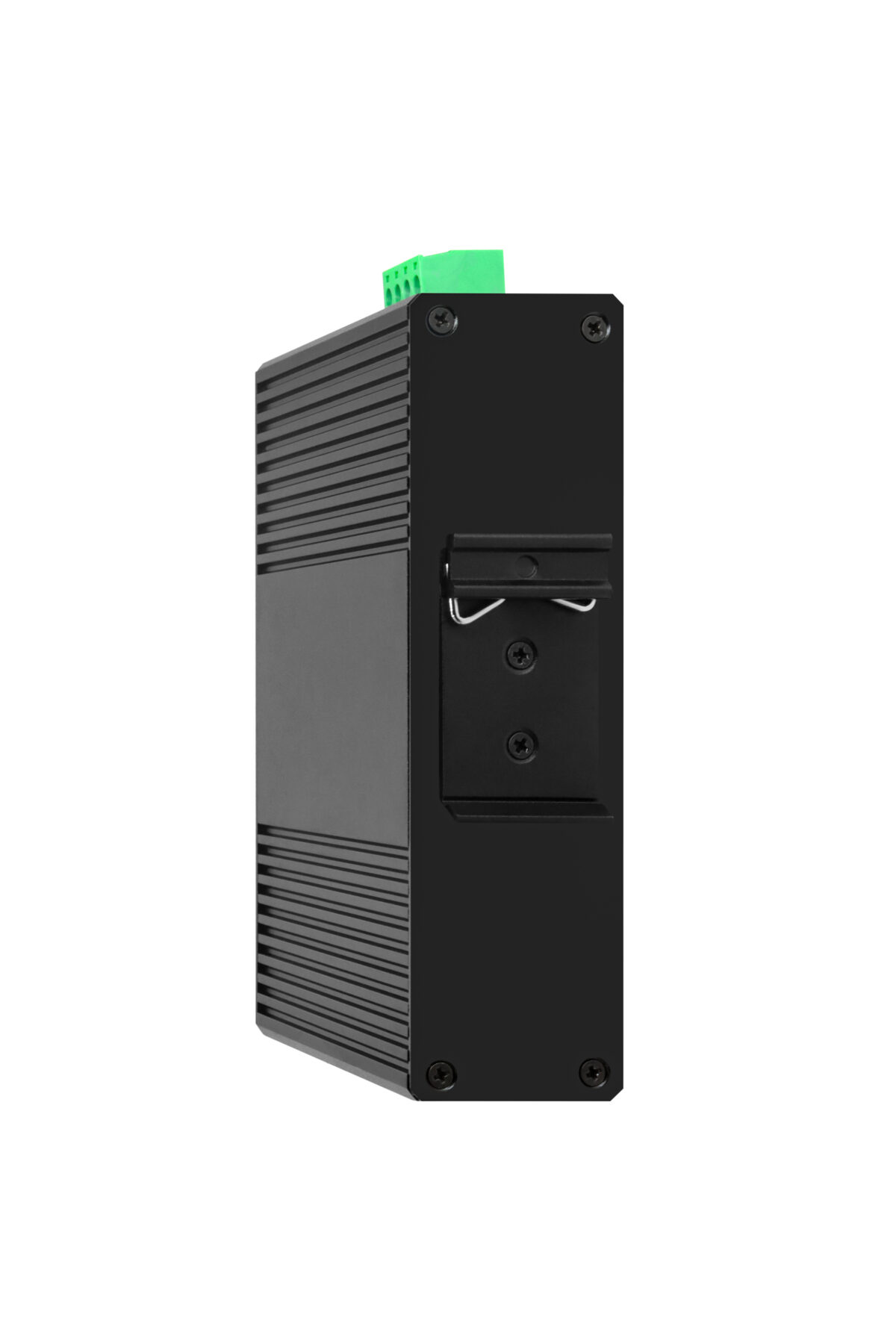

| DIN rail mounting | Yes |
| Country of origin | China |
| Flash memory | 2 MB |
| Fanless | Yes |
| Mean time between failures (MTBF) | 43800 h |
| Layers per pallet (air) | 16 pc(s) |
| Pallet gross length | 80 cm |
| Pallet gross width | 120 cm |
| Compliance certificates | CE, Federal Communications Commission (FCC), RoHS, UKCA |

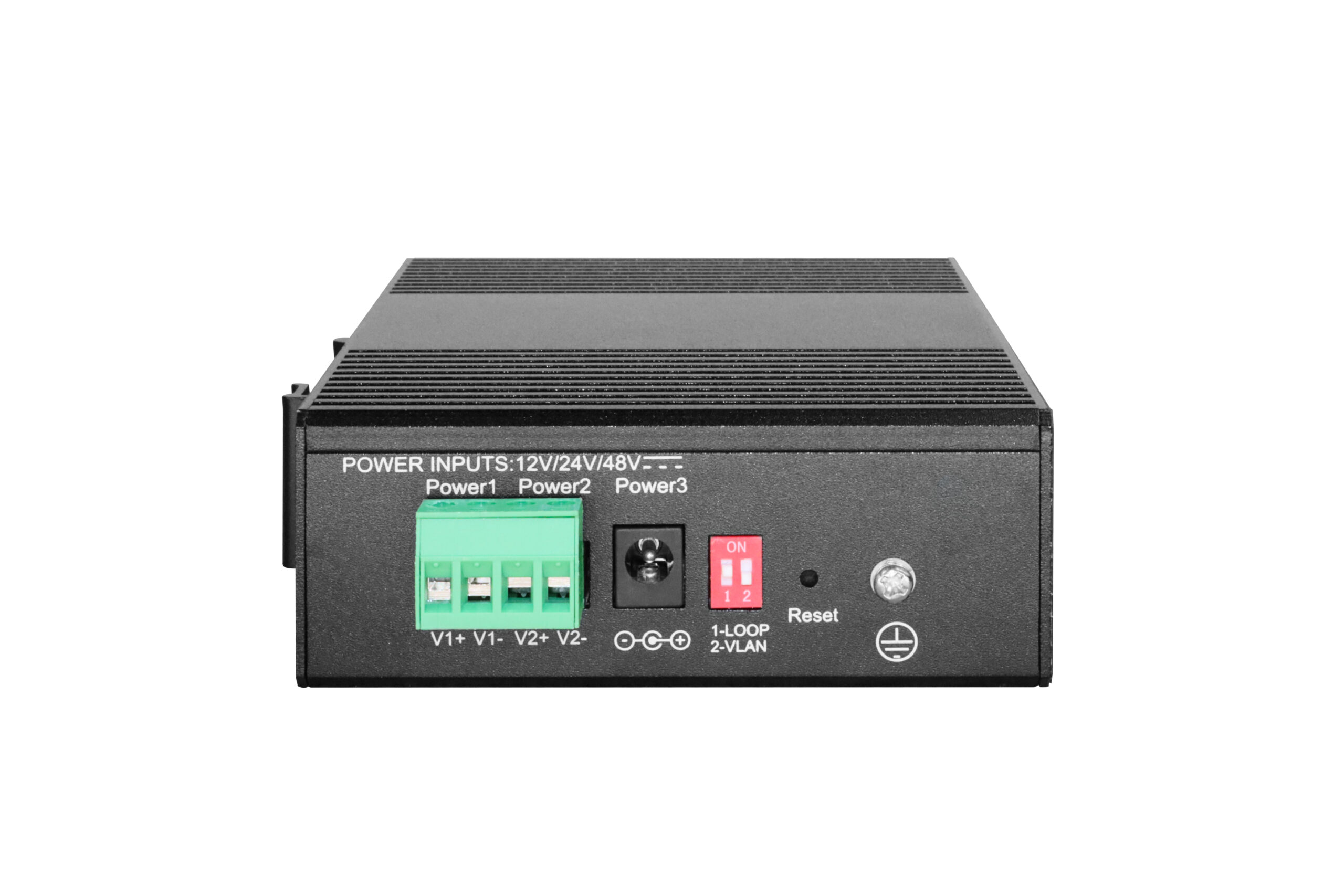

| Power source | DC/PoE |
| Power supply included | No |
| Redundant power supply (RPS) support | Yes |
| DC input voltage | 44 - 57 V |
| Power consumption (typical) | 68 W |
| Surge protection | Yes |
| Surge protection voltage | 4 kV |
| Power protection features | Surge protection |
| Power over Ethernet (PoE) | Yes |
| Power over Ethernet plus (PoE+) ports quantity | 4 |
| Total Power over Ethernet (PoE) budget | 68 W |
| Operating temperature (T-T) | -40 - 75 °C |
| Storage temperature (T-T) | -40 - 85 °C |
| Operating relative humidity (H-H) | 10 - 90% |
| Storage relative humidity (H-H) | 5 - 95% |
| Heat dissipation | 27.3 BTU/h |
| Width | 136 mm |
| Depth | 108 mm |
| Height | 38.5 mm |
| Weight | 450 g |
| Quick start guide | Yes |
| Terminal block included | Yes |
| Package type | Box |
| DIN rail included | Yes |
| Package width | 191 mm |
| Package depth | 135 mm |
| Package height | 60 mm |
| Package weight | 680 g |
| Sustainability compliance | Yes |
| Pallet gross height | 154.4 cm |
| Master (outer) case width | 480 mm |
| Master (outer) case length | 395 mm |
| Master (outer) case height | 350 mm |
| Harmonized System (HS) code | 8517620090 |
| Master (outer) case gross weight | 24 kg |
| Products per master (outer) case | 34 pc(s) |
