Power up Your Business with New-Era Business WiFi 6
WiFi 6 brings faster speeds, lower lag, less interference, and higher capacity.
Seamless Integration into Omada SDN
The Omada Software Defined Networking (SDN) platform integrates network devices, including access points, switches, and routers. It provides 100% centralized cloud management and creates a highly scalable network controlled from a single interface.
Auto Channel Selection and Power Adjustment
to Optimize Overall Performance*
Provides powerful wireless performance while significantly reducing WiFi interference by automatically adjusting the channel settings and transmission power levels of neighboring APs in the same network.
Easy Deployment & Higher Performance by Omada Mesh§
Easy Pairing, Less Wiring
With Mesh technology, Omada EAPs save you from extra wires by wirelessly extending your WiFi signal further and more flexibly to hard-to-wire areas.
Optimized Network Performance
Intelligent self-organization optimizes the best path between EAPs while self-healing ensures you stay online even when one AP is disrupted.
Always Stay Smooth with Fast Roaming§
Ensures customers to enjoy uninterrupted streaming when moving around by switching clients automatically to the access points with the optimal signal.
Ultra-Slim Design Brings More Agility

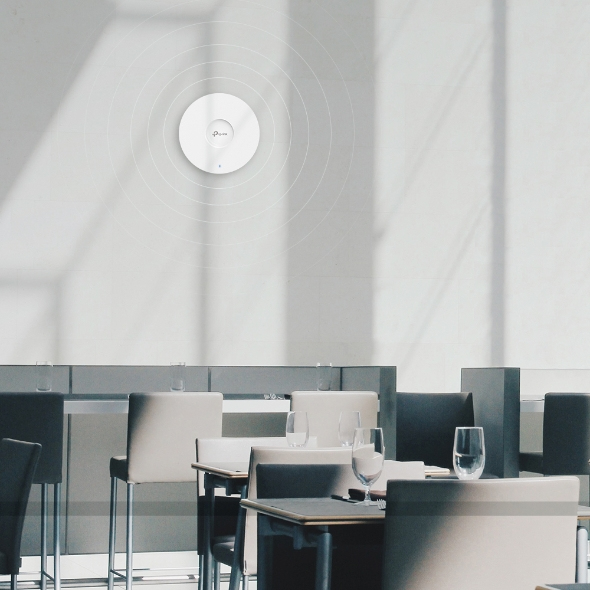

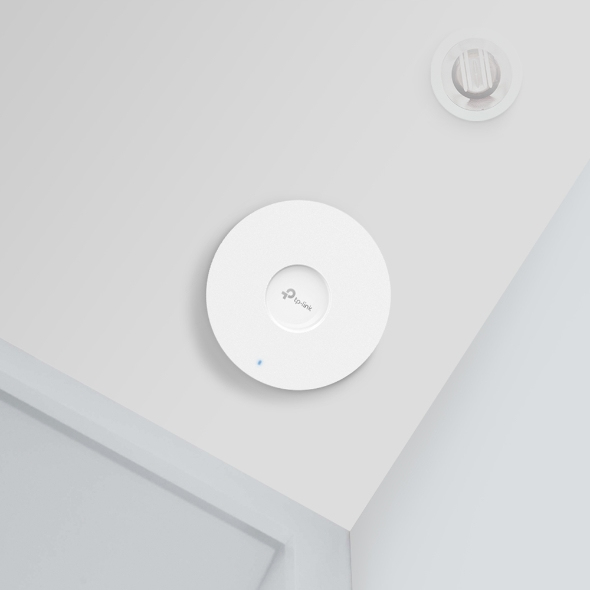

Exceptional performance with compact design ensures simple WiFi installation while saving space. The elegant appearance makes EAP653 perfectly blend into any modern office, hotel, classroom, or café.
Spezifikationen
| 2.4 GHz | Y |
| 5 GHz | Y |
| Maximum data transfer rate | 2976 Mbit/s |
| Maximum data transfer rate (2.4 GHz) | 574 Mbit/s |
| Maximum data transfer rate (5 GHz) | 2402 Mbit/s |
| Ethernet LAN data rates | 10,100,1000 Mbit/s |
| Networking standards | IEEE 802.11a,IEEE 802.11ac,IEEE 802.11b,IEEE 802.11g,IEEE 802.11h |
| Channel bandwidth | 160 MHz |
| MIMO | Y |
| MIMO type | Multi User MIMO |
| Spread spectrum method | OFDMA |
| Fit AP mode features | Mesh networking |
| VLAN support | Y |
| Virtual LAN features | VLAN mapping |
| Band steering | Y |
| Quality of Service (QoS) support | Y |
| Transmitting power (CE) | 27 dBm |
| Transmitting power (FCC) | 22 dBm |
| Security algorithms | HTTPS,SNMP,SNMPv2,SNMPv3,SSH,WPA,WPA2,WPA3 |
| MAC address filtering | Y |
| Web-based management | Y |
| Ethernet LAN (RJ-45) ports | 1 |
| Power over Ethernet (PoE) | Y |
| Placement | Ceiling, Wall |
| Product colour | White |
| Reset button | Y |
| LED indicators | Y |
| Antenna type | Internal |
| Antennas quantity | 4 |
| Antenna gain level (max) | 5 dBi |
| Compatible operating systems | Microsoft Windows XP, Vista, Windows 7, Windows 8, Windows10, Windows 11, Linux |
| Operating relative humidity (H-H) | 10 - 90% |
| Operating temperature (T-T) | 0 - 40 °C |
| Storage temperature (T-T) | -40 - 70 °C |
| Storage relative humidity (H-H) | 5 - 90% |
| Sustainability certificates | RoHS |
| Width | 160 mm |
| Depth | 160 mm |
| Height | 33.6 mm |
| Number of products included | 1 pc(s) |
