Match Your Room with
AX3000 WiFi 6
AX3000 Wall Plate WiFi 6 Access Point
AX3000 WiFi 6 Speed
2402 Mbps on 5 GHz + 574 Mbps on 2.4 GHz†
High-Efficiency WiFi 6
More connected devices enjoy faster speeds
Centralized Cloud Management
Manage the whole network locally or from the cloud
160 MHz Channel
Double the data at peak transmission times on a single stream with HE160
Enhanced Security
With guest networks, Captive Portal, and WPA3 encryption
Seamless Roaming
Uninterrupted streaming when moving between APs§

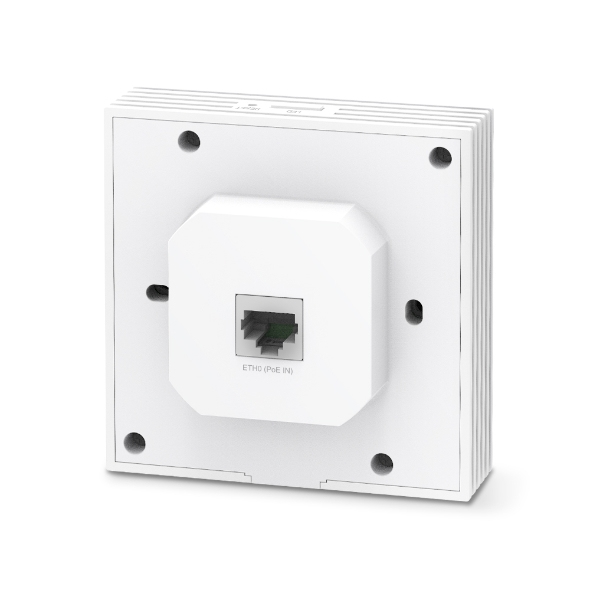

Two Gigabit Ports
One downlink and one uplink for fast wired connection
802.3af/at PoE Support
Flexible and convenient deployment

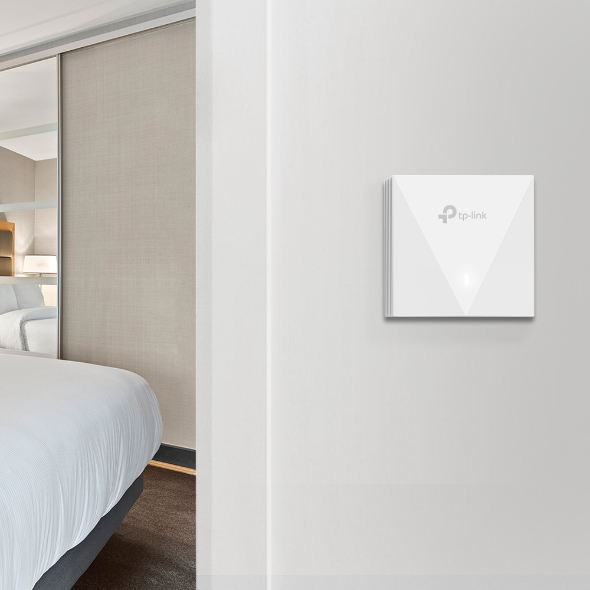

Quick, Simplified Installation
Compatible with 86 mm & EU standard junction box
Lightning-Fast AX3000 WiFi 6 Speeds
WiFi 6 brings faster speeds, lower lag, less interference, and higher capacity. Enjoy more than twice the speed of WiFi 5 with new-era business WiFi 6 with speeds up to 2976 Mbps.
Better User Experience with High-Performance
WiFi 6 Connectivity
The latest WiFi 6 features and advanced wireless techniques guarantee higher network efficiency and lower latency.
More than Speed, Security Matters
Safeguard your network against brute force attack and snooping with WPA3 enterprise-grade security protection, portal authentication, and segregated guest networks.
Secure Guest Network with Up to 16 SSIDs
Guest networks provide enhanced security. Different SSIDs also enable flexible access management.
Boost Business with Facebook WiFi and SMS Login
Captive portals (including SMS, Facebook WiFi, Voucher) and 802.1x authentication ensure authorized guests can access the network. Boost your business with a customized marketing page.
WPA3 for Worry-Free Open Public Networks
WPA3 provides more data security for previously unsecured and open WiFi hotspots with advanced enterprise security.
Gigabit Ports to Bridge Network
The gigabit downlink port allows to connect wired device to the gigabit network.

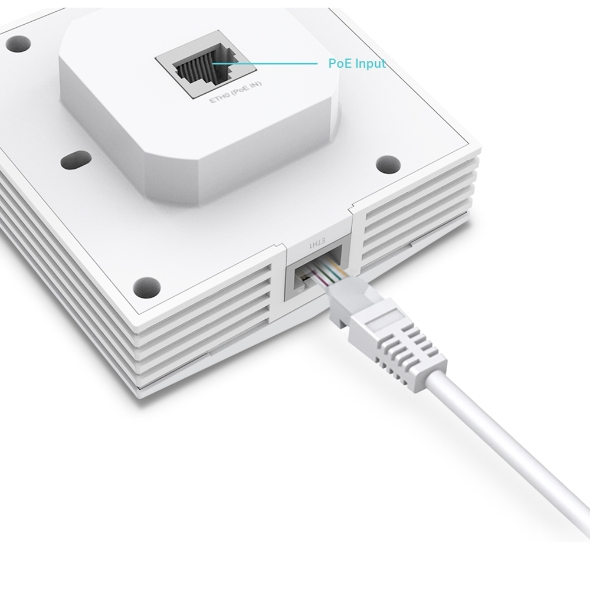

Effortless Deployment with PoE Powered
With 802.3af/802.3at PoE support, there’s no need for more wiring. Plug it into the existing Ethernet cables, and you’re ready.
Quick, Simplified Installation
With an easy-to-install design, there is no need to bring someone in to install our EAP.
Auto Channel Selection and Power Adjustment to Optimize Overall Performance
Provides powerful wireless performance while significantly reducing WiFi interference by automatically adjusting the channel settings and transmission power levels of neighboring APs in the same network
Seamless Integration into Omada SDN
The Omada Software Defined Networking (SDN) platform integrates network devices including access points, switches, and routers to provide 100% centralized cloud management and create a highly scalable network—all controlled from a single interface.
Easy Management with the Omada App
Follow configuration instructions on the Omada app to get set up in minutes. Omada lets you configure settings, monitor the network status, and manage clients, all from the convenience of your mobile device.
Spezifikationen
| 2.4 GHz | Y |
| 5 GHz | Y |
| Maximum data transfer rate | 3000 Mbit/s |
| Maximum data transfer rate (5 GHz) | 2402 Mbit/s |
| Ethernet LAN data rates | 10,100,1000 Mbit/s |
| Frequency band | 2.4/5 GHz |
| Networking standards | IEEE 802.11a, IEEE 802.11ac, IEEE 802.11ax, IEEE 802.11b, IEEE 802.11g, IEEE 802.11n, IEEE 802.3af, IEEE 802.3at |
| VLAN support | Y |
| Rate limiting | Y |
| Band steering | Y |
| Airtime Fairness (ATF) | Y |
| Quality of Service (QoS) support | Y |
| Security algorithms | SNMP, SSH, WPA-Enterprise, WPA2-Enterprise |
| MAC address filtering | Y |
| Number of SSID supported | 16 |
| Remote Authentication Dial-In User Service (RADIUS) | Y |
| Ethernet LAN (RJ-45) ports | 2 |
| Power over Ethernet (PoE) | Y |
| Power consumption (typical) | 11.5 W |
| Placement | Wall |
| Product colour | White |
| Reset button | Y |
| LED indicators | Y |
| Certification | CE, RoHS |
| Antenna type | Internal |
| Width | 86 mm |
| Depth | 86 mm |
| Height | 42.6 mm |
| Package type | Box |
| Number of products included | 1 pc(s) |
| Quick start guide | Y |
| Operating relative humidity (H-H) | 10 - 920% |
| Operating temperature (T-T) | 0 - 40 °C |
| Storage temperature (T-T) | -40 - 70 °C |
| Storage relative humidity (H-H) | 5 - 90% |
