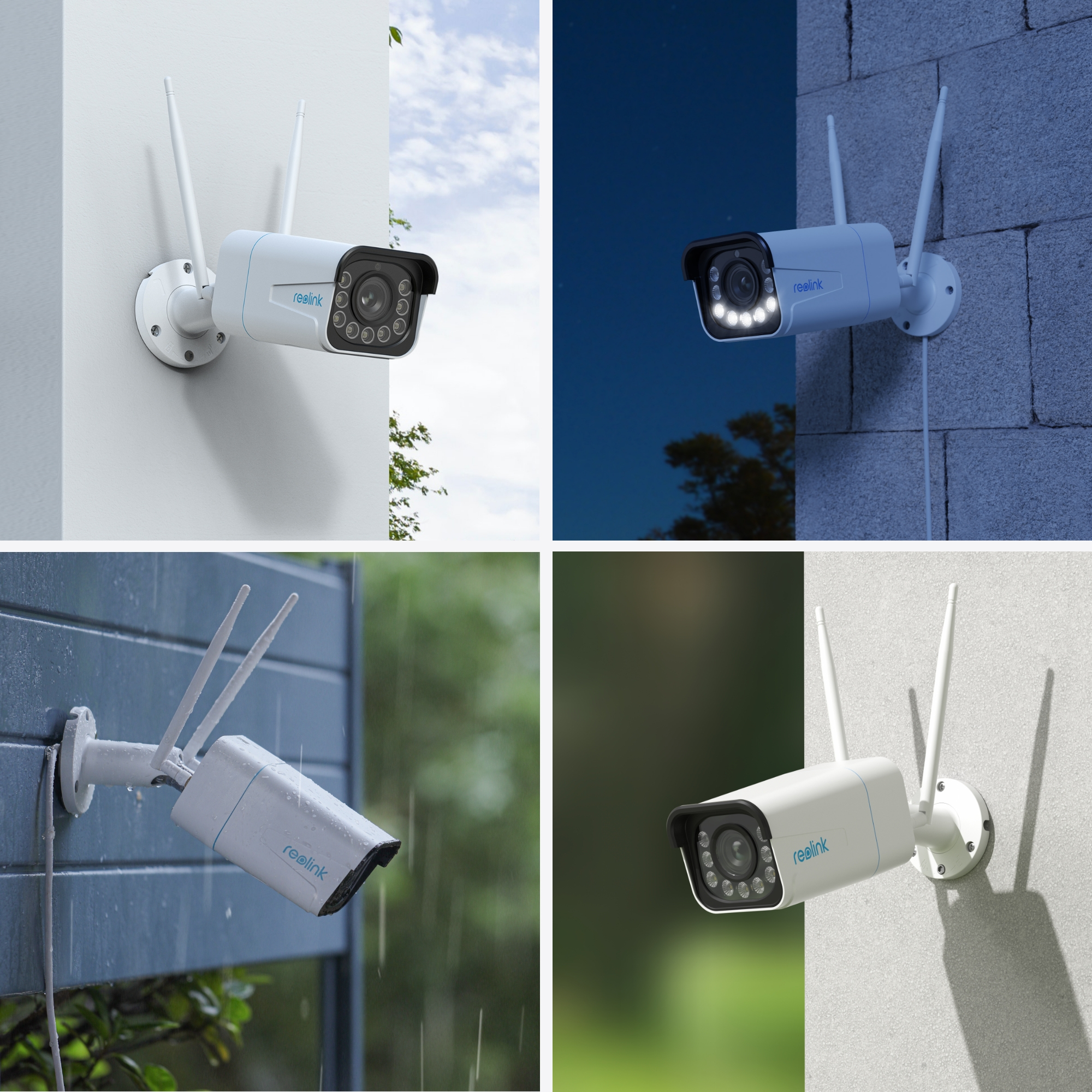

Leap into the new era of Wi-Fi 6 technology with Reolink W430. You can now enjoy seamless, lag-free 4K live streaming powered by next-gen Wi-Fi 6. With 5X optical zoom, you can zoom in for clear details from afar or zoom out to maximize your coverage. Rest assured with smart person, vehicle, and animal detection and respond through the camera with 2-way audio.
Zoom in for Distant Details
With 5X optical zoom, you can feel free to zoom in for clearer details even from the distance, without compromising the clarity.

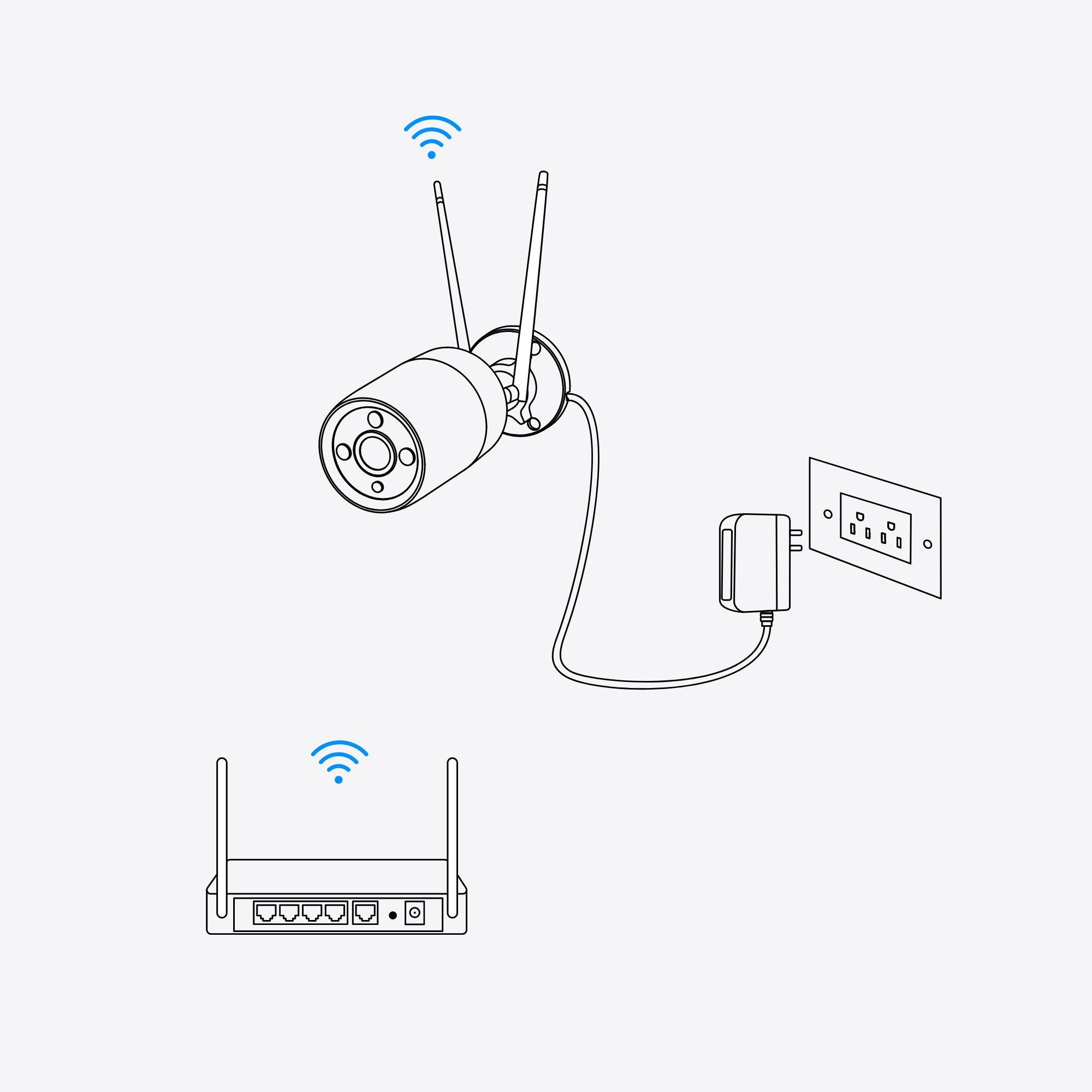

Always Connected, Never Offline
Enjoy the reliability of 2.4/5GHz dual-band Wi-Fi for uninterrupted surveillance and smooth live viewing anytime, anywhere.
Unleash 4K 8MP Visual Brilliance
Dive into 4K 8MP unparalleled clarity and experience breathtakingly vivid footage without missing a single detail.
Illuminate the Night in Vivid Color
Experience enhanced nighttime with vibrant colors and rich details, even in low-light conditions
Smart Detection Tailored to Your Needs
Experience customized security with Person/Vehicle/Motion Detection feature, offering precise alerts and notifications tailored to your specific security requirements.
Double Warning for the Unwelcome
Enhance your security with double warning method. With siren and spotlights both activated, this camera can deter intruders and other threats effectively.
Talk Anytime, from Anywhere
Engage in seamless communication with our two-way audio feature, allowing you to listen and talk to people in front of your camera in real-time from anywhere.
DIY Your Wi-Fi Security System Easily
Take control of your security system centrally with Reolink Wi-Fi NVR, allowing you to customize and build your Wi-Fi security system with ease and confidence.
Spezifikationen
| Type | IP security camera |
| Placement supported | Outdoor |
| Connectivity technology | Wired & Wireless |
| Virtual assistant | Google Assistant |
| Day/night mode | Yes |
| Built-in light | Yes |
| Luminous flux | 450 lm |
| Colour temperature | 6500 K |
| Form factor | Dome |
| Mounting type | Wall |
| Product colour | White |
| International Protection (IP) code | IP67 |
| Weatherproof | Yes |
| Lens viewing angle, horizontal | 31 - 700° |
| Lens viewing angle, vertical | 17 - 55° |
| Number of sensors | 1 |
| Optical sensor size | 25.4 / 2.8 mm (1 / 2.8") |
| Sensor type | CMOS |
| Zoom capability | Yes |
| Optical zoom | 5x |
| Number of lenses | 1 |
| Focal length range | 2.7 - 13.5 mm |
| Maximum aperture number | 1.6 |
| Night vision | Yes |
| Night vision distance | 30 m |
| LED type | IR |
| Number of illumination LEDs | 5 |
| Infra-red wavelength | 850 nm |
| Maximum resolution | 3840 x 2160 pixels |
| Total megapixels | 8 MP |
| Video formats supported | H.265 |
| Video compression formats | H.265 |
| Supported graphics resolutions | 3840 x 2160 |
| Supported video modes | 2160p |
| Video recording | Yes |
| Frame rate | 15 fps |
| Bit rate | 64Kbps - 6144Kbps |
| Built-in speaker(s) | Yes |
| Audio system | 2-way |
| Built-in microphone | Yes |
| Ethernet LAN | Yes |
| Ethernet interface type | Fast Ethernet |
| Networking standards | IEEE 802.11a, IEEE 802.11ac, IEEE 802.11ax, IEEE 802.11b, IEEE 802.11g, IEEE 802.11n |
| Supported network protocols | HTTPS, SSL, TCP/IP, UDP, IPv4, UPnP, RTSP, RTMP, ONVIF, SMTP, NTP, DHCP, DNS, DDNS, FTP, P2P |
| Wi-Fi | Yes |
| Wi-Fi standards | 802.11a, 802.11b, 802.11g, Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac), Wi-Fi 6 (802.11ax) |
| Bluetooth | No |
| Number of users | 20 user(s) |
| User access level | Administrator, User |
| Live view | Yes |
| Built-in HDD | No |
| Card reader integrated | Yes |
| Compatible memory cards | MicroSD (TransFlash) |
| Maximum memory card size | 256 GB |
| Built-in siren | Yes |
| Video motion detection | Yes |
| Security algorithms | WPA, WPA2, WPA3 |
| Intelligent Video Surveillance (IVS) system features | Human detection, Pet detection, Vehicle detection |
| Reset button | Yes |
| Power source type | DC |
| Power consumption (max) | 12 W |
| DC output voltage | 12 |
| DC output current | 1 A |
| Operating temperature (T-T) | -10 - 55 °C |
| Operating relative humidity (H-H) | 10 - 90% |
| Windows operating systems supported | Yes |
| Mac operating systems supported | Yes |
| Mobile operating systems supported | Android, iOS |
| Width | 238 mm |
| Depth | 72 mm |
| Height | 80 mm |
| Weight | 863 g |
| Number of cameras | 1 |
| Mounting kit | Yes |
| Screws included | Yes |
| Packaging content | 1* W430 1* Power Adapter 1* 1m Network Cable 1* 4.5m Power Extension Cable 1* Quick Start Guide 1* Surveillance Sticker 1* Mounting Template 1* Pack of Screws 1* Wrench 1* Waterproof Lid |
