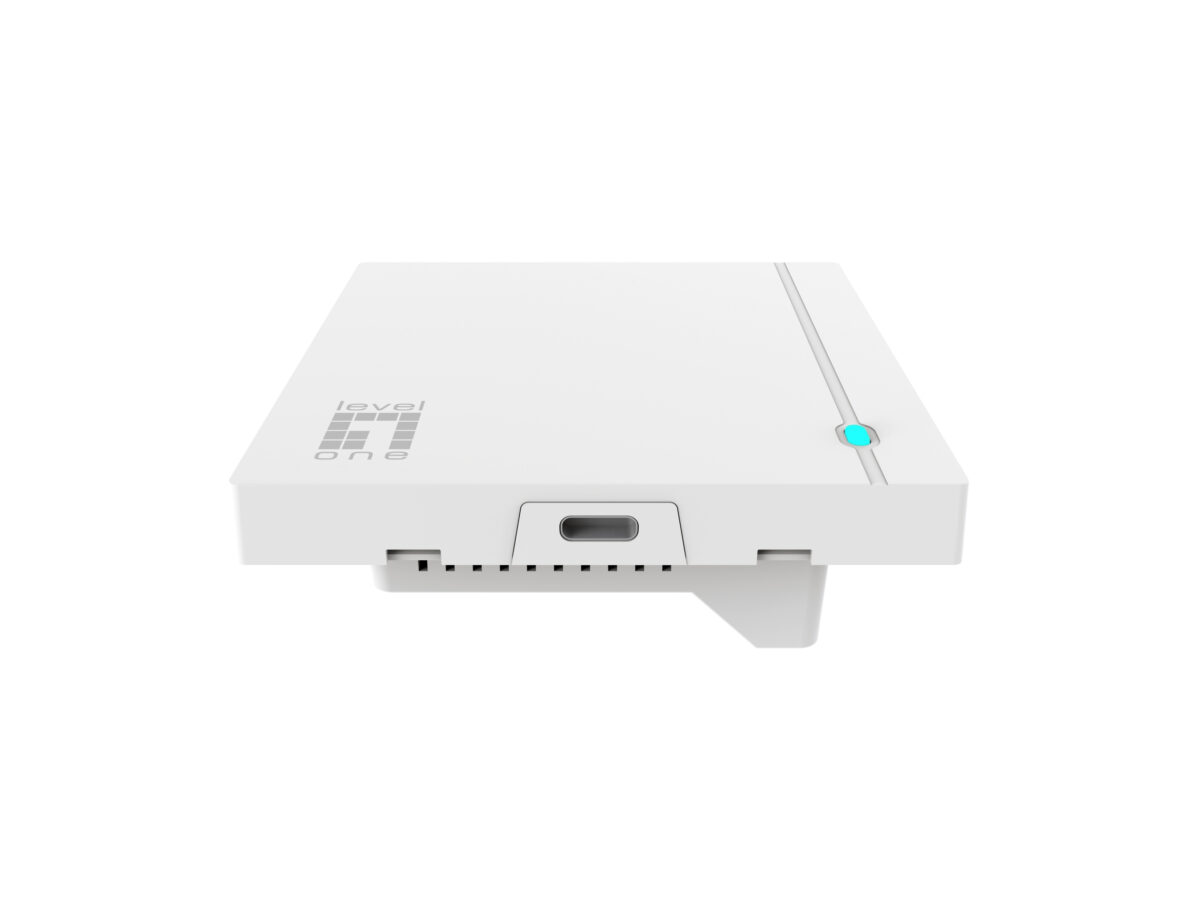

The LevelOne new access point, the WAP-8231, can be used to create wireless networks that are not only technically perfect but also visually perfect. Since there is almost not to see with the wireless access point hardware: The wireless access point – just like a power outlet – is simply mounted on the wall. hotels and guesthouses can carefully set up WLANs for guests in each room. It can achieve a combined speed of up to 1800 Mbps. The WAP-8231 operates in the 2.4 and 5 GHz bands and can also be used as part of a managed network when controlled by the LevelOne WAC-2010 / WAC-2013 WLAN controller.
LevelOne WAP-8231 also offers PoE, removing the need for an external power supply, which makes it easy to install. A fast, versatile and secure access point for a wide variety of network requirements.
Spezifikationen
| 2.4 GHz | Yes |
| 5 GHz | Yes |
| 6 GHz | No |
| Maximum data transfer rate | 1800 Mbit/s |
| Maximum data transfer rate (2.4 GHz) | 574 Mbit/s |
| Maximum data transfer rate (5 GHz) | 1201 Mbit/s |
| Ethernet LAN data rates | 10,100,1000 Mbit/s |
| Frequency band | 2.412 -2.484, 5.18 - 5.825 GHz |
| Networking standards | IEEE 802.11a, IEEE 802.11ac, IEEE 802.11ax, IEEE 802.11b, IEEE 802.11g, IEEE 802.11n, IEEE 802.3, IEEE 802.3ab, IEEE 802.3af, IEEE 802.3u |
| Cabling technology | 10/100/1000Base-T(X) |
| Channels quantity | 165 channels |
| MIMO | Yes |
| MIMO type | Multi User MIMO |
| Spread spectrum method | OFDMA |
| Operating modes | AP Mode |
| Security algorithms | WPA2-AES, WPA3 |
| Number of SSID supported | 8 |
| Web-based management | Yes |
| USB connector type | USB Type-C |
| WAN connection | Ethernet (RJ-45) |
| Power over Ethernet (PoE) | Yes |
| Power consumption (typical) | 14 W |
| Placement | In-wall |
| Product colour | White |
| LED indicators | Wi-Fi |
| Country of origin | China |
| Antenna type | Internal |
| Antennas quantity | 4 |
| Antenna gain level (max) | 3 dBi |
| Flash memory | 16 MB |
| Internal memory | 128 MB |
| Master (outer) cases per pallet (air) | 10 pc(s) |
| Pallet gross length | 80 cm |
| Pallet gross width | 120 cm |
| Pallet height (air) | 189 cm |
| Compliance certificates | CE, RoHS, UKCA |
| Width | 87 mm |
| Depth | 86 mm |
| Height | 31.5 mm |
| Weight | 138 g |
| Package width | 120 mm |
| Package depth | 110 mm |
| Package height | 65 mm |
| Package weight | 240 g |
| Package type | Box |
| Mounting kit | Yes |
| Interface adapter included | USB Type-C male - RJ-45 female |
| Quick start guide | Yes |
| Operating relative humidity (H-H) | 10 - 90% |
| Operating temperature (T-T) | 10 - 40 °C |
| Storage temperature (T-T) | -40 - 70 °C |
| Storage relative humidity (H-H) | 5 - 95% |
| Sustainability compliance | Yes |
| Sustainability certificates | CE, RoHS, UKCA |
| Master (outer) case width | 515 mm |
| Master (outer) case length | 348 mm |
| Master (outer) case height | 580 mm |
| Master (outer) case gross weight | 25 kg |
| Products per master (outer) case | 100 pc(s) |
